TOBO STEEL GROUP CHINA

|
| Place of Origin: | CHINA |
| Brand Name: | TOBO |
| Certification: | ISO |
| Model Number: | / |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | negotiable |
| Packaging Details: | Valves are wrapped in plastic bubble sheet & in plywood boxes |
| Delivery Time: | 15workdays |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 10000pcs/month |
| Coating: | Various Coatings | Connection Type: | Threaded, Socket Weld, Flanged |
|---|---|---|---|
| End Connection: | Various End Connections | End Connection Size: | Various End Connection Sizes |
| Handle Finish: | Various Handle Finishes | Handle Material: | Various Handle Materials |
| Handle Type: | Various Handle Types | Material: | Stainless Steel |
| Pressure Rating: | Various Pressure Ratings | Screen Material: | Various Screen Materials |
| Screen Perforation: | Various Screen Perforations | Screen Size: | Various Screen Sizes |
| Size: | Various Sizes | Temperature Rating: | Various Temperature Ratings |
| Type: | Y Strainer |

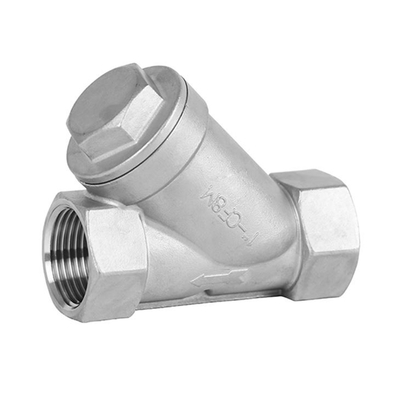

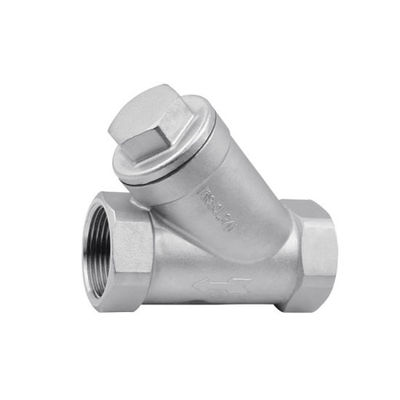

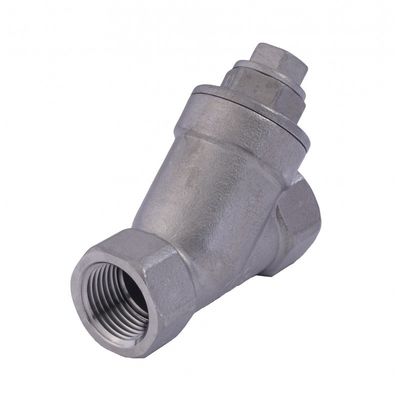

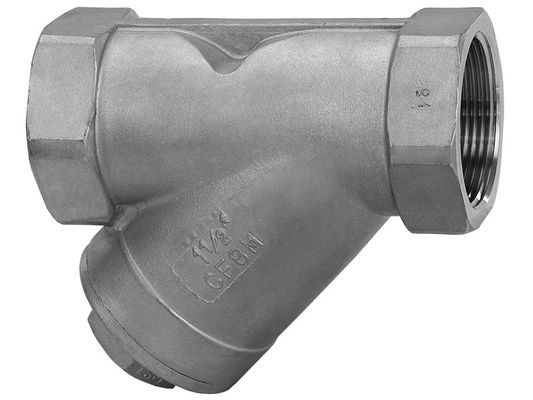

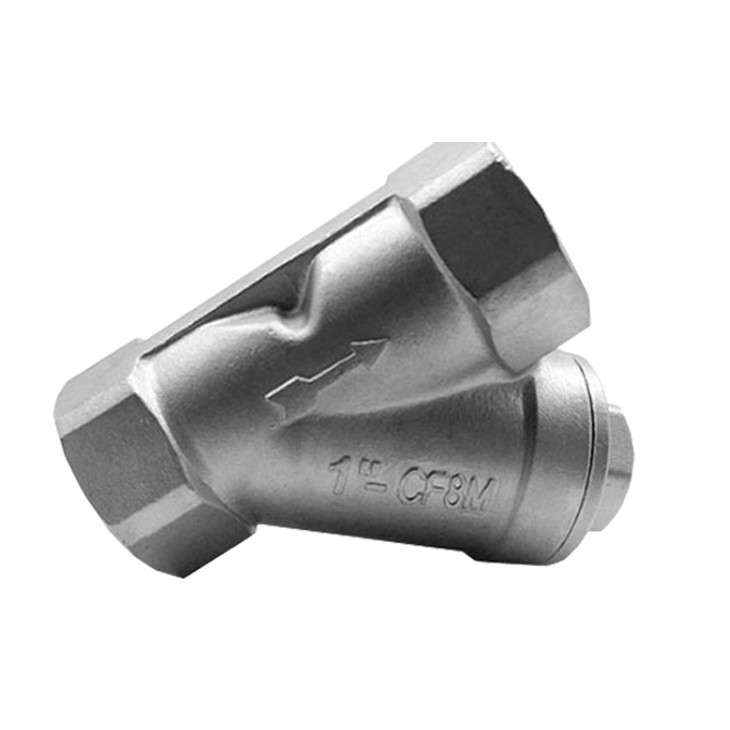

Stainless Steel Mueller Strainer NPT High Temperature Y Strainer
Stainless Steel Y type Threaded Strainer
1. Size: 1/4''--3''(DN6--DN80)
2. Materials: CF8M (SS316), CF8 (SS304) CF3M (SS316L), CF3 (SS304L),WCB,DIN 1.4408/1.4308/1.0619 Available|
Description:
|
Y- Strainer
|
| Size: |
1/2"
|
| Material: |
Stainless steel 304
|
|
Thread:
|
BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B 0203/2(PT), KS B0221/2(PT), ISO228-1, ISO7-1,etc..
|
| Connection: |
Female Thread
|
|
Rating:
|
800PSI
|
|
Fabrication:
|
Silica Sol Precision Casting Technology |
Main application:The products are widely used in oil,gas,chemical,electric power metallurgy,lifting,water supply,auto ship manufacturing oil-water road heating system control ,food,pharmaceutical,daily chemical industry ,municipal construction,mechanical equipment,etc.We keep on the concept of credit management, and try our best to givebest serviceto our customers!
|
Ptoduct name
|
1 /2 -4 Inch Stainless Steel 800PSI Y Type Female Filter Strainer | ||||
|
Material
|
ss201 ss304(CF8,1.4301) ss316 (CF8M,1.4408) | ||||
| Size | 1/2‘’-4‘’ | ||||
| Brand Name | WOD | SJFM | OEM | ||
| Temperature Range | -40---210 Degree C | ||||
| Connection | F/F Thread | ||||
| Thread | BSPP NPT BSPT DIN2999 DIN259 ISO228 | ||||
| Sealing | PTFE | RPTFE | PPL | ||
| Certification | CE | ISO | |||
| Standard | ASMEB16.34 | GB/T12237 | |||
| Capacity to produce | 5000PCS/Week | ||||
| Terms of payment | T/T L/C D/A D/P VISA | ||||
| Delivery time | Depend on quantity,usually 30-45 days after we received the deposit | ||||
1. Precision machining of balls and threads reduces operating torque.
2. Valve body seal can select multiple sealing materials and provide reliable bubble - level seal.
3. The valve body is manufactured by melting mould and solid solution annealing to ensure high quality and withstand greater strength (high temperature and high pressure).
